Our machinery supplies full ranges of PVC pipe making machines, which apply for U-PVC, C-PVC, M-PVC, O-PVC material. The PVC pipe extrusion line includes conical twin screw extruder, spiral die head, vacuum tank, water tank, haul-off, no-dust cutter or planetary cutter, belling machine with O-ring sockets or rectangular sockets or U types of sockets. Our PVC pipe machine can make pipes ranging from 16mm to 630mm, with wall thickness range of 1-30mm.
Technical Features & Advantages
- Special screw structure for efficient plasticization of different formula types
- Flexible use of conical and parallel extruders for pipes with varying pressure levels and CaCO3 conditions
- Spiral type die reduces melt seam on pipes, ensuring high density and excellent mechanical properties
- Efficient single or double chambers vacuum and cooling tank system
- Servo/frequency speed controlling with independent multi-track haul-off for even pulling and no deformation
- Planetary cutter uses mechanical and hydraulic feeding for synchronous cutting and chamfering
Production Process
PVC powder + additive → mixing → material feeder → twin screw extruder → mould and calibrator → vacuum and cooling tank → spraying cooling machine → haul-off machine → cutting machine → discharge rack or pipe belling machine.
Specifications
| MODEL |
PIPE DIAMETER (MM) |
EXTRUDER MODEL |
MOTOR POWER (KW) |
| LB-32F |
16-32 (FOUR PIPE) |
SJSZ65/132 |
37 AC |
| LB-32E |
16-32 (DOUBLE PIPE) |
SJSZ51/105 |
22 AC |
| LB-32W |
16-32 (DOUBLE PIPE) |
SJSZ65/132 |
37 AC |
| LB-40E |
16-40 (DOUBLE PIPE) |
SJSZ51/105 |
22 AC |
| LB-40W |
16-40 (DOUBLE PIPE) |
SJSZ65/132 |
37 AC |
| LB-50E |
16-50 (DOUBLE PIPE) |
SJSZ51/105 |
22 AC |
| LB-50W |
16-50 (DOUBLE PIPE) |
SJSZ65/132 |
37 AC |
| LB-63W |
16-63 (DOUBLE PIPE) |
SJSZ65/132 |
37 AC |
Component Details
Mixer: Specially designed to reduce raw material self-friction, improving energy utilization efficiency. Features vacuum suction load with low noise and dust-free operation.

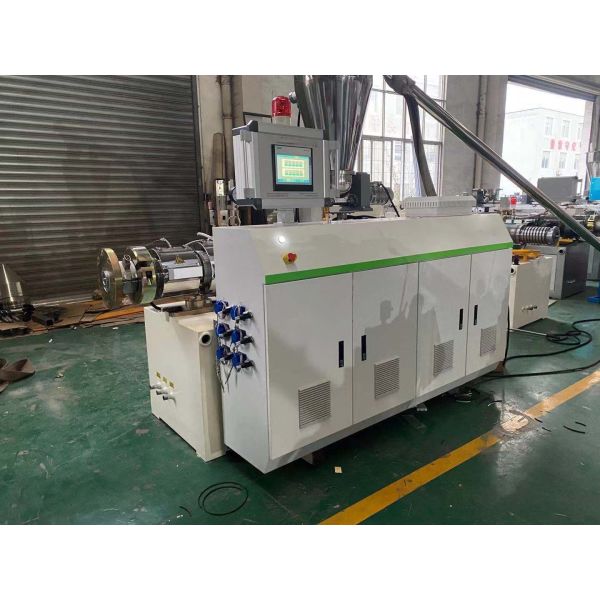

Twin Screw Extruder: Crafted with top brand components for production stability, efficiency, and durability. Conical twin screw design ensures homogeneous mixture, better plastification, and conveying efficiency.
Vacuum Calibration & Cooling: Two-chamber structure with vacuum calibration and cooling parts. Both vacuum tank and spraying cooling tank use stainless 304 steel. Excellent vacuum system ensures precise pipe sizing.

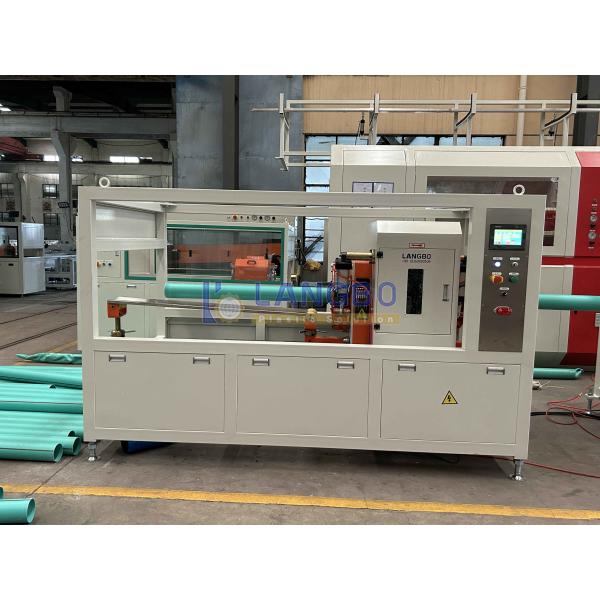

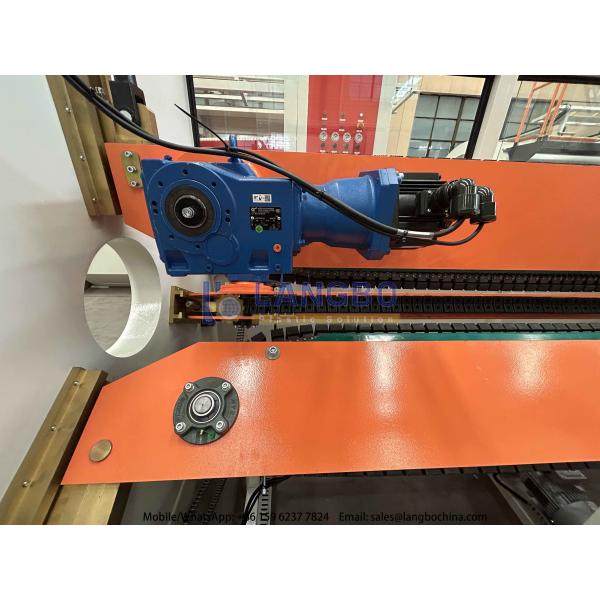

Haul-off Unit: Three crawler track design ensures stable pipe running. Adjustable hauling model based on specific production requirements through general control.

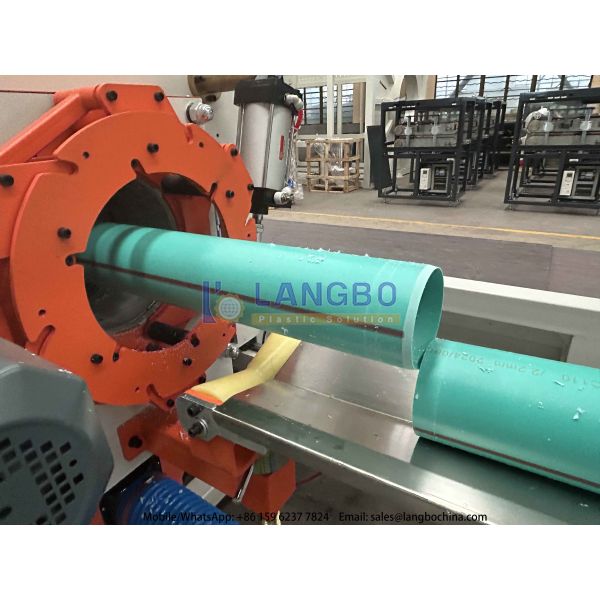

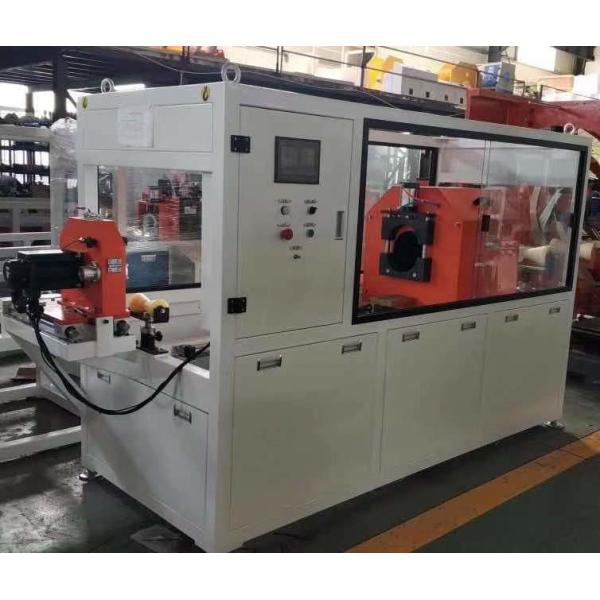

Cutting Unit: High accuracy encoder ensures precise and stable cutting length. PLC control system allows manual operation for specific applications.
Additional Technical Features
- Plastic pulverizer easily grinds all types of Hard & Soft PVC into powder
- Dust collector effectively reduces dust pollution
- Main fan discharging reduces operator labor intensity
- Host door cover opens for convenient maintenance and cutter replacement
- Water and wind double cooling system prevents overheating of bearings and components
- Adjustable powder mesh (15-100mesh)
- Easy installation and maintenance with accessible cleaning
- Well-known brand accessories including motors for long-term operation
- Wide range of optional accessories for customized solutions based on budget and requirements
Delivery Information
- Delivery: 30 days after order
- Warranty: 12 months
- Payment: T/T 30% in advance, T/T 70% before delivery
- Packing: Standard export wooden case
Our Service
- One year guarantee for whole machine
- 24 hours technical support
- Overseas installation & commission service by our engineers
- Post-warranty maintenance guidance and competitively priced spare parts
- Training service for operators
