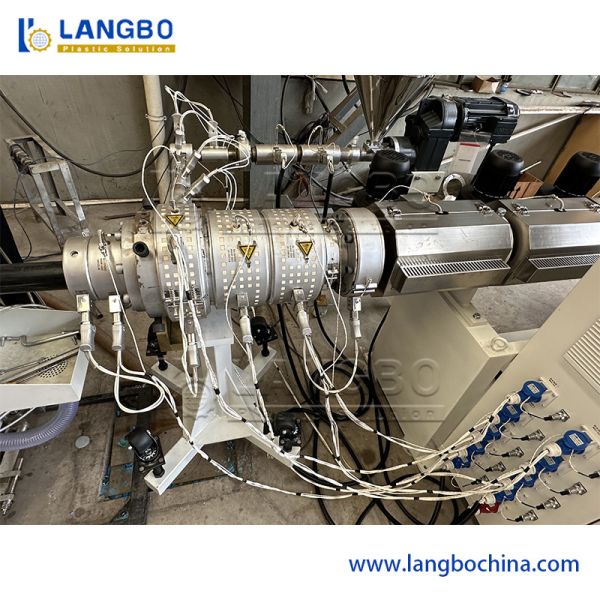

PE Pipe Extruder | Automatic Feeding System High-Precision Screw for Uniform Mixing

Brand Name : LB

Model Number : LB

Certification : CE / ISO

Place of Origin : ZHANGJIAGANG

MOQ : 1 SET

Price : negotiation（USD,EUR）

Payment Terms : L/C,T/T

Supply Ability : 15 SETS PER MONTH

Delivery Time : 45 WORKING DAYS

Packaging Details : NORMAL PACKAGE

Machine Making Material : 304 medical level stainless steel

Center Height : 1000mm

Pipe Range : 16-1200mm

Operatingvoltage : 380V, 50Hz

Screw Design : Single-screw

Plastic Process : PE

Output : 350Kg/H

Coolingmethod : Water cooling tank

Contact Now

PE Pipe Extruder | Automatic Feeding System High-Precision Screw for Uniform Mixing

Main Technical Parameters:

Multi-Layer pipes are produced by co-extrusion pipe line. The production line is a kind of special craft processes which can save the cost of raw material and make a series of pipes with functional features.

For Example, in order to save the cost of raw material, we can use the recycled material which is to be the middle layer to produce the PE thick wall pipes. For hot water supply pipes, the production line could not only have the PP-R Layer but also increase some other structure Layer including glass fiber, which attach the pipe to some excellent application features.

Application Scenarios of PE Pipe Production Lines

PE pipe extrusion lines are used for water supply, gas, irrigation, drainage, cable conduits, and industrial pipes. They process PE100/PE80 materials with diameters of 16–1200mm, offering chemical resistance, high strength, and consistent quality, compliant with ISO and ASTM standards, suitable for diverse infrastructure and industrial applications.

Specification

Model	Pipe diameter (mm)	Extruder	Extruder power(kw)	Capacity(kg/hr)
LB-63	20-63	SJ65/33	55AC	150
LB-110	20-110	SJ65/33	55AC	150
LB-160	75-160	SJ75/33	90AC	280
LB-250	90-250	SJ75/33	110DC	350
LB-315	110-315	SJ90/33	160DC	450
LB-450	160-450	SJ90/33	160DC	450
LB-630	315-630	SJ120/33	280DC	850
LB-800	500-800	SJ150/33	315DC	1100
LB-1200	710-1200	SJ150/34	400DC	1350
