Automatic Pipe Belling Machine with Infrared Ray Heating System and Horizontal Pipe Movement for 20-630mm Plastic PVC Pipes

Delivery Time : 45 WORKING DAYS

Plastic Type : plastic PVC pipe

Automationlevel : Semi-automatic/Automatic

Payment Terms : L/C,T/T

Capacity : 120~800kg/h

Operationmode : Automatic / Semi-automatic

Motor Power : 22KW

Packaging Details : NORMAL PACKAGE

Dimensions : 1500mm x 800mm x 1200mm

Item : pipe coiling machine

Place of Origin : ZHANGJIAGANG

Model Number : LB-80/156

Production Output : 120-800kg/hr

Powersupply : 220V/380V, 50Hz/60Hz

MOQ : 1 SET

Price : Negotiable（USD EUR）

Packing : Film packages

Motorpower : 1.5kW to 5.5kW

Supply Ability : 15 SETS PER MONTH

Brand Name : LB

Certification : CE ISO

Powerconsumption : 5 kW

Contact Now

Automatic Pipe Belling Machine For Plastic Pipe Production Line Integration

Product Overview

The SGK Series Full Automatic Plastic Pipe Belling Machine features motor control bracket height adjustment for easy operation. This advanced system is configured with material-receiving pulling device and related process interfaces that integrate seamlessly with the main machine, enabling both collaborative and standalone operation.

Horizontal pipe movement ensures stable, accurate actions that prevent pipe damage
Infrared ray heating system with double-heating furnace configuration
Each heating furnace equipped with central heating furnace core
Expansion tube head shaping method for precise nozzle dimensions
Control panel includes conversion switches for expansion solvent plug (direct type) and expansion flexibility sealing washer type plug (R type)
Main electric control components utilize imported parts for stable, reliable system performance

Technical Specifications

Pipe Expand Range (Outer Diameter)	Φ 20-630mm
Belling Type	R type & U type
Used Oil Label	No. 40/Hydraulic Oil
Quantity of Heater	2
Highest Temperature in Heater	280°C
Gas Pressure	0.6~0.8Mpa
Water Pressure	0.2~0.3Mpa
Pipe Length	3-6m
Center Height	900mm ± 50mm
Machine Dimensions	8615 × 3125 × 2500mm

Product Gallery

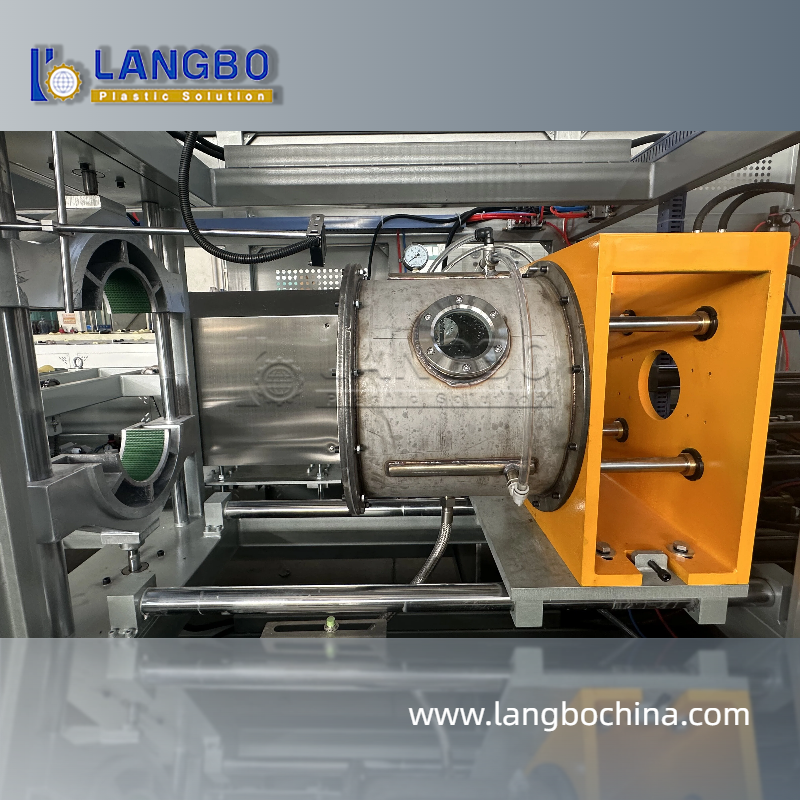

Automatic Pipe Belling Machine with Infrared Ray Heating System and Horizontal Pipe Movement for 20-630mm Plastic PVC Pipes

Product Tags:

Automatic pipe belling machine with infrared heating

Horizontal pipe belling machine for PVC pipes

Pipe belling machine for 20-630mm pipes

Automatic Pipe Belling Machine with Infrared Ray Heating System and Horizontal Pipe Movement for 20-630mm Plastic PVC Pipes Images
