Four Strand PVC Pipe Making Machine with High Compression Resistance Conical Twin Screw and Four Cavity Die Head

Packaging Details : NORMAL PACKAGE

Brand Name : LB

Model Number : LB-63W

Certification : CE ISO

Place of Origin : ZHANGJIAGANG, JIANGSU, CHINA

MOQ : 1 SET

Price : USD EUR

Payment Terms : T/T

Supply Ability : 15 SETS PER MONTH

Delivery Time : 45 WORKING DAYS

Material of Screw : 38CrMoALA

Screw Design : conical twin screw

Motor : Beide

raw material : pvc powder

Inverter : ABB

name : PVC Pipe Extrusion Line

Temperature Sensor : Omron

Plastic : PVC

Application : pipe making

Contact Now

Four Strand PVC Pipe Making Machine High Compression Resistance

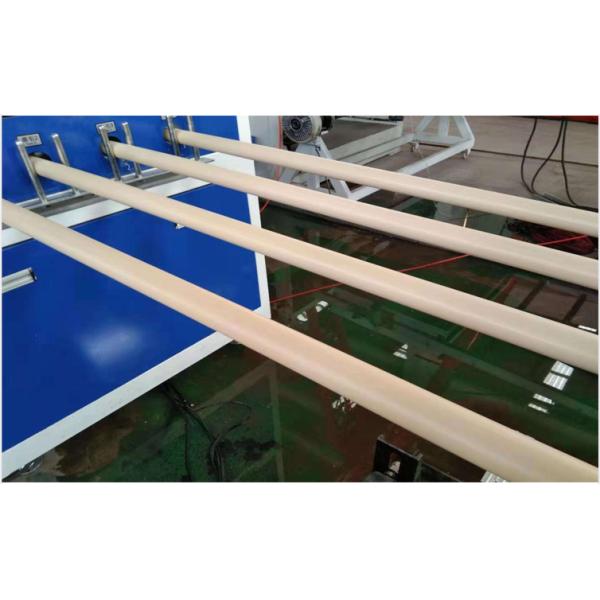

Four Strand PVC Pipe Making Machine

Main extruder is conical twin screw extruder, with two options for choosing machinery: two cavity pipe extrusion line and four cavity pipe extrusion line. This complete production line can be equipped with online pipe socket/belling machine.

The complete production line can equip pipe socket/belling machine online for U type socket/belling. The full line can be operated via PLC touch screen or manually.

Four Strand PVC Pipe Making Machine with High Compression Resistance Conical Twin Screw and Four Cavity Die Head

Specifications

Production capacity has a close relationship with screw size and motor power. The following table provides an overview of our pipe two strand pipe solutions:

MODEL	PIPE DIAMETER (MM)	EXTRUDER MODEL	MOTOR POWER (KW)
LB-32F	16-32 (FOUR PIPE)	SJSZ65/132	37 AC
LB-32E	16-32 (DOUBLE PIPE)	SJSZ51/105	22 AC
LB-32W	16-32 (DOUBLE PIPE)	SJSZ65/132	37 AC
LB-40E	16-40 (DOUBLE PIPE)	SJSZ51/105	22 AC
LB-40W	16-40 (DOUBLE PIPE)	SJSZ65/132	37 AC
LB-50E	16-50 (DOUBLE PIPE)	SJSZ51/105	22 AC
LB-50W	16-50 (DOUBLE PIPE)	SJSZ65/132	37 AC
LB-63W	16-63 (DOUBLE PIPE)	SJSZ65/132	37 AC

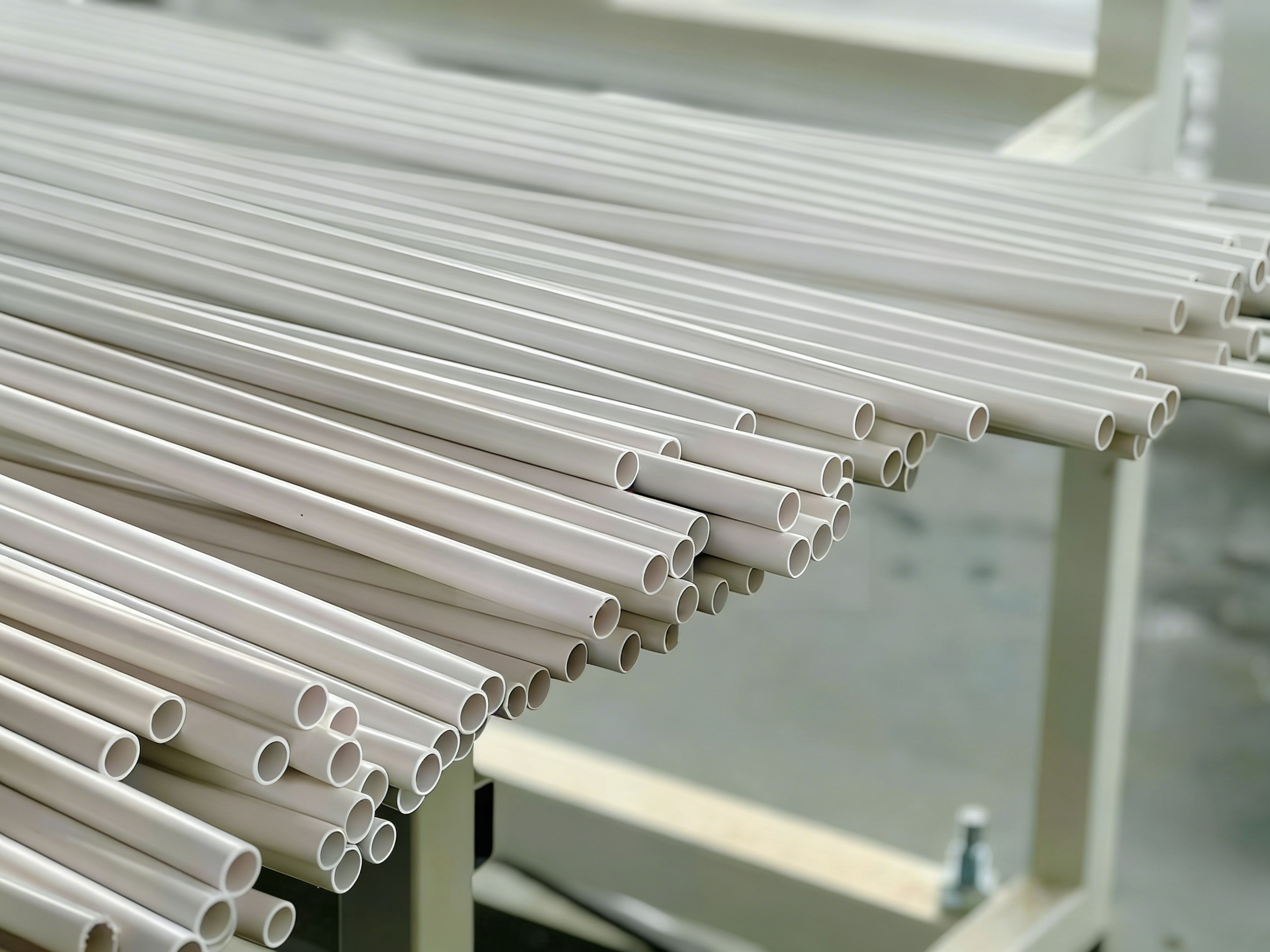

Features & Applications

Product Features

Smooth Walls: Inner and outer walls are smooth with low friction coefficient, reducing wire and cable resistance in pipelines
High Compression Resistance: Withstands pressure above 750N, suitable for open or concrete installations (choose heavy pipe for concrete embedding)
Excellent Impact & Heat Resistance: Resists breaking during concrete tamping and softening under condensation heat
Moisture & Chemical Resistance: Excellent moisture-proof, acid, and alkali resistance without rusting
Flame Retardant: Self-extinguishing (extinguishes within 30 seconds after flame removal)
Insulation: Excellent insulation performance, withstands AC2000V, 50Hz without breakdown in water conditions
Insect Resistance: Special additives prevent odor emission and deter insect/rodent damage
Easy Construction: Easy cutting and bending with proper tools, quick connection with PVC adhesive

Product Application

Mainly used for building or structure indoor threading, wall threading, underground buried lines, and other power and communication line applications.

Production Line Components

65/132 twin-screw extruder
Four cavity die head

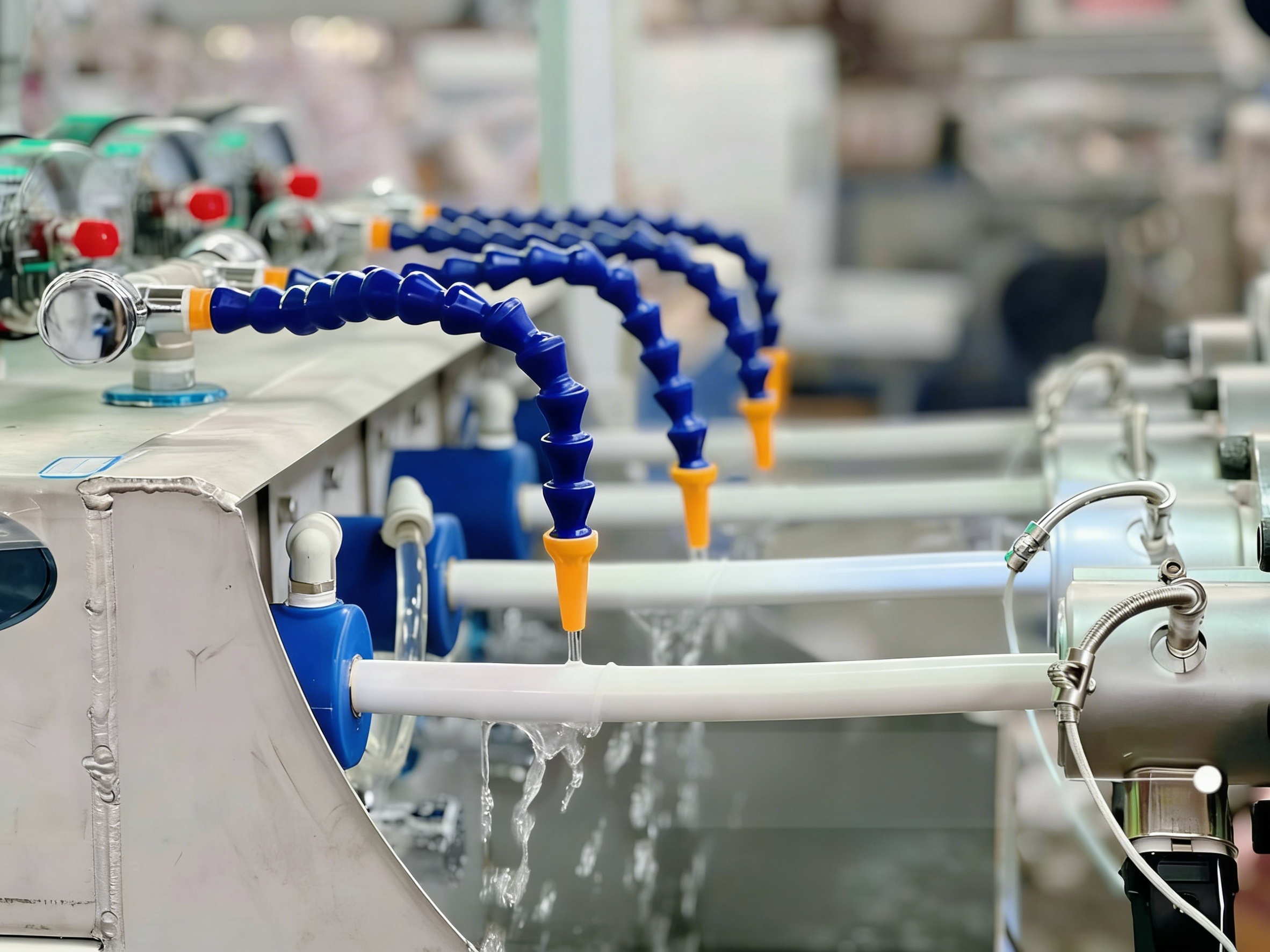

Stainless steel vacuum calibration tank
Automatic printer spraying moving frame

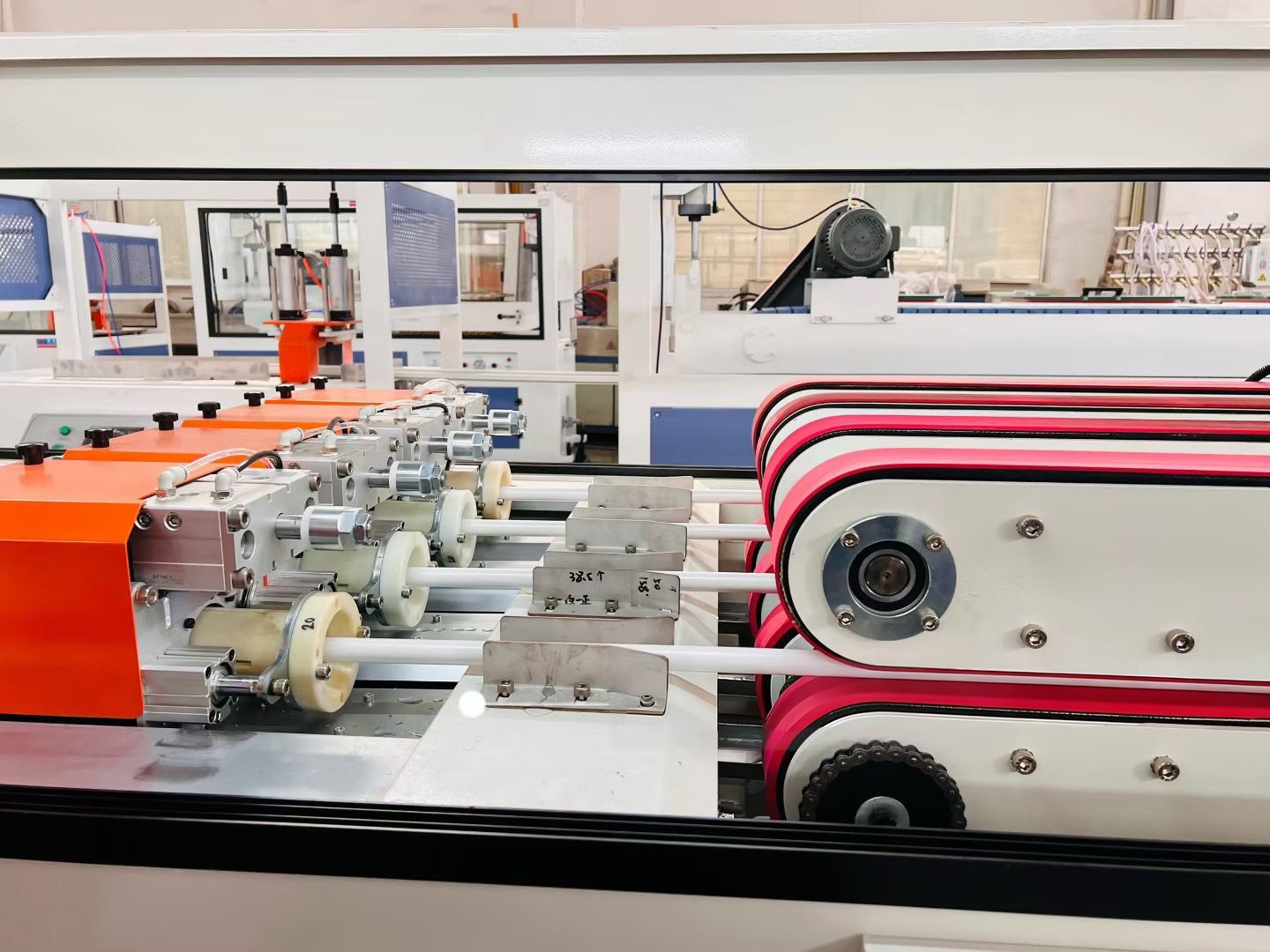

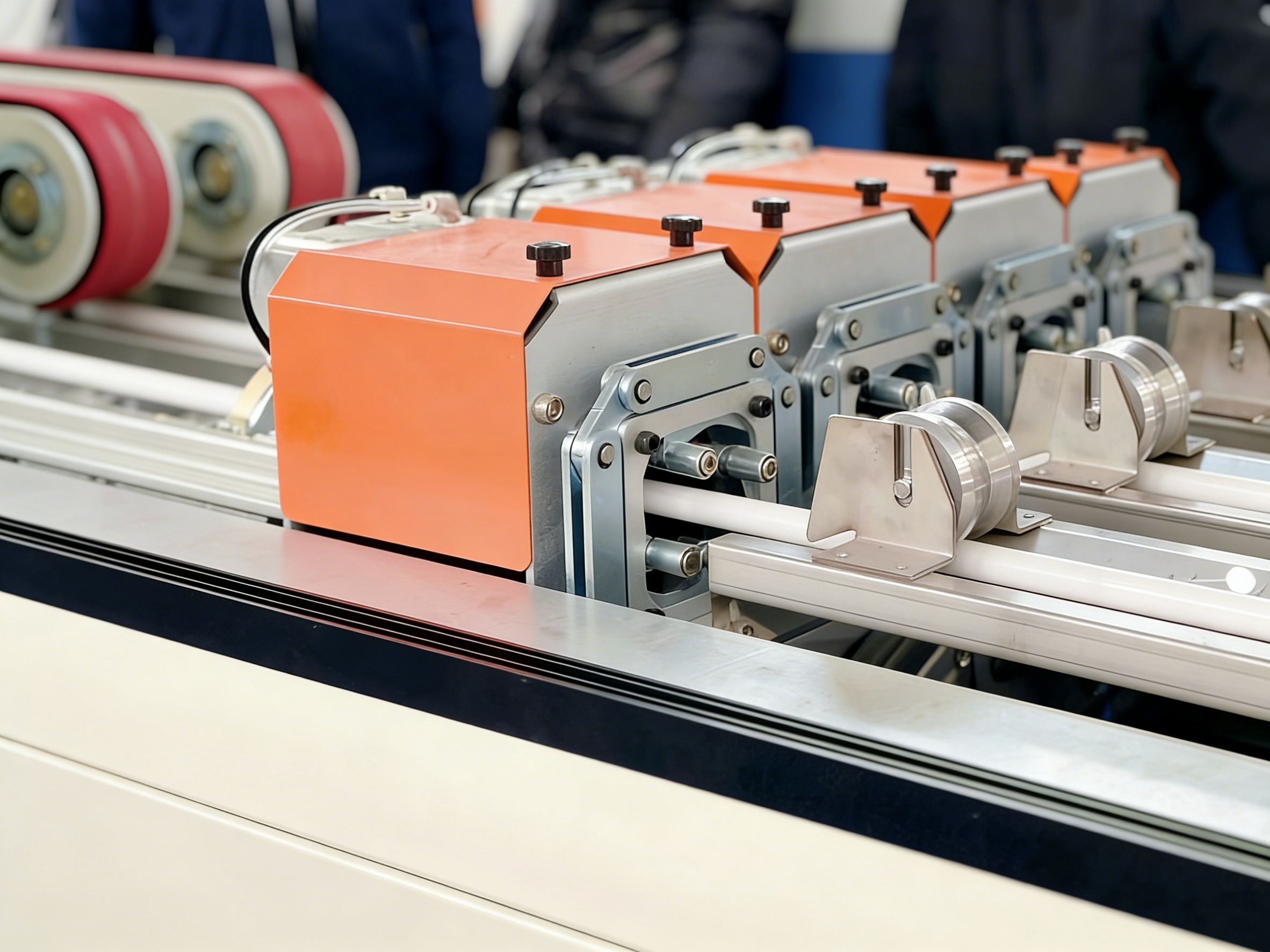

Four cavity puller & cutting machine
Stacker
