75-315mm PVC Pipe Extrusion Line with Socket Making Machine
This industrial-grade PVC pipe extrusion line is designed for high-volume production of 75-315mm diameter pipes, complete with integrated socket making capabilities for comprehensive pipe manufacturing solutions.
Production Line Overview
Our 75-315mm PVC pipe extrusion line with mixer combination delivers exceptional performance for water supply and electrical conduit pipe manufacturing. Engineered with high-output extruders and motors, this system utilizes premium components to ensure reliable operation and superior product quality.
Technical Specifications
| Model |
Pipe Diameter (mm) |
Extruder Model |
Motor Power |
Capacity (kg/h) |
| LB-250 |
63-250 |
SJSZ65/132 |
37 AC |
250 |
| LB-315 |
75-315 |
SJSZ80/156 |
55 AC |
350 |
| LB-630 |
315-600 |
SJSZ92/188 |
110 AC |
800 |
| LB-800 |
560-800 |
SJSZ105/216 |
160 AC |
1100 |
Key System Components
Twin Screw Extruder Machine

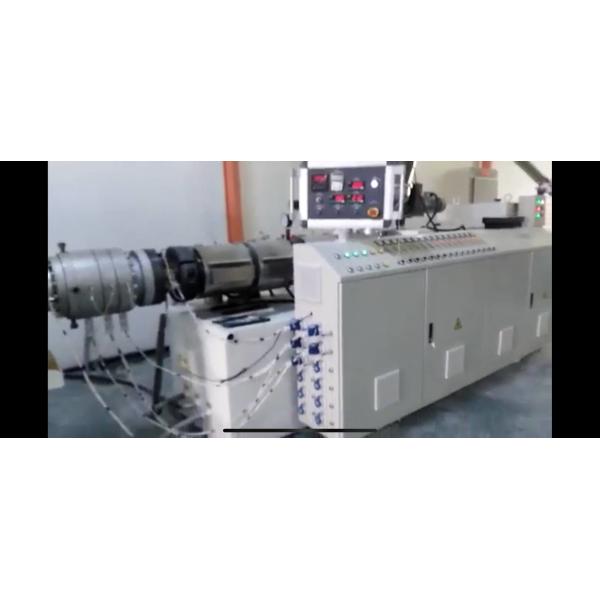

Manufactured with premium brand components to guarantee production stability, efficiency, and long-term durability. Our conical twin screw extruder design optimizes raw material processing with homogeneous mixing, superior plastification, and enhanced conveying efficiency.
Vacuum Calibration & Cooling System

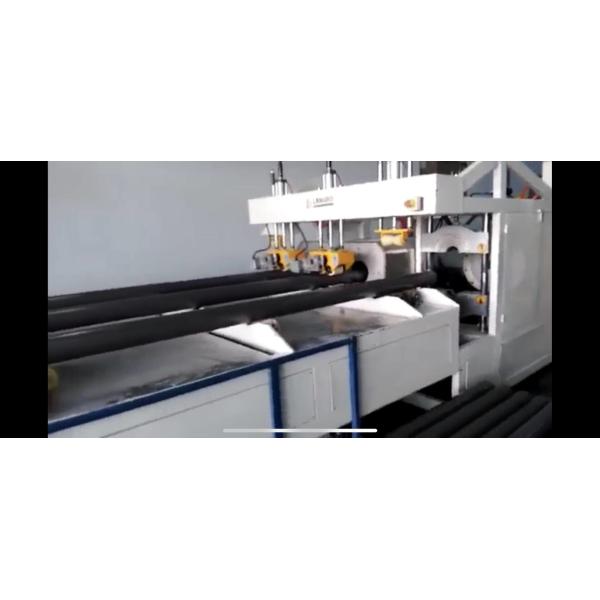

Features a 6-meter cooling section with multiple water nozzles for optimal temperature control. Precision installation ensures maximum cooling efficiency, hardening PVC pipes effectively as they pass through the water bath in double-strand configuration.
Haul-off Machine

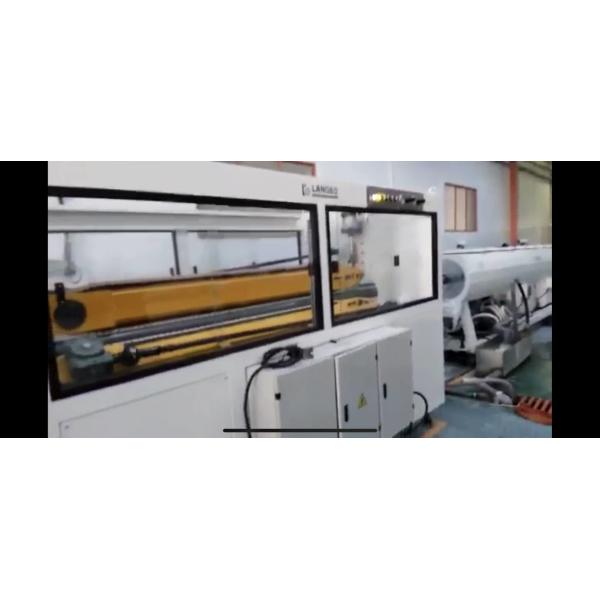

Equipped with three crawler track haul-off units designed for stable handling of 75-315mm PVC pipes. Constructed with high-quality rubber and chain components, each track features individual motor and gearbox control with cylinder adjustment for precise vertical positioning.
Automatic Cutter Unit

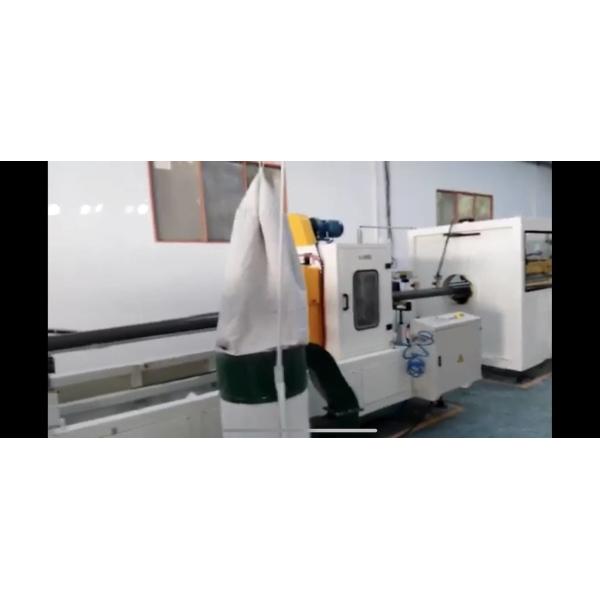

PLC-controlled cutting system with encoder technology for exact length measurement and precision cutting. The fully automated planetary cutting mechanism includes pre-delivery programming and adjustment, plus illuminated observation windows for monitoring.
Belling Machine
Advanced socket forming technology featuring dual heating ovens for progressive temperature control. The belling chamber incorporates water spray cooling and push-power separation mechanisms for efficient socket production with excellent results.
